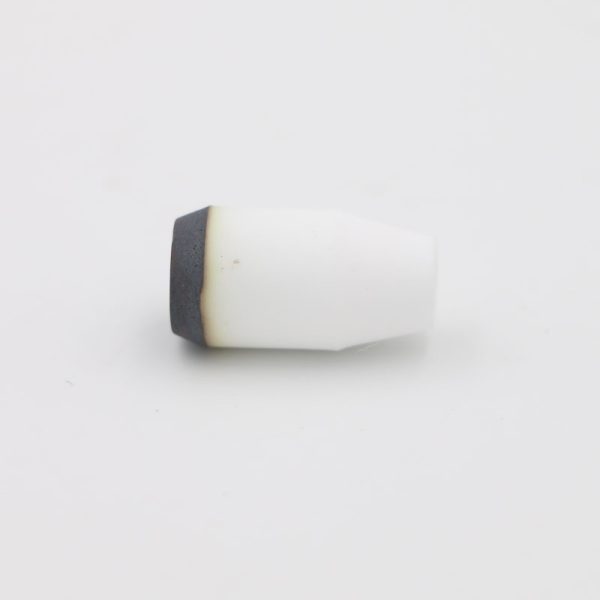

Semiconductor Ceramics

Brand: FlameBC
Item Part Number: FLAME-019
Specification: 10mm
Scope of Application: Ignition of internal combustion engines
Additional Performance:
Discharge Voltage: 700-1000V
Temperature Resistance: 1000℃

Technical Performance of the Semiconductor Ceramics is as follows:

Function: The high-voltage DC pulse electricity is released onto the surface of the semiconductor glaze ceramic, forming a strong electron avalanche – spark, and it is not affected by the environment.
Materials: 95 high-alumina porcelain, semiconductor glaze.
Process Structure: The semiconductor glaze is applied to the surface of the ceramic and then subjected to high-temperature sintering.
Discharge Voltage: 700-1000V
Service Life: 1 million sparks
It can be customized according to customer requirements.
